Vibra Sandmaster
SKU
115.251.502

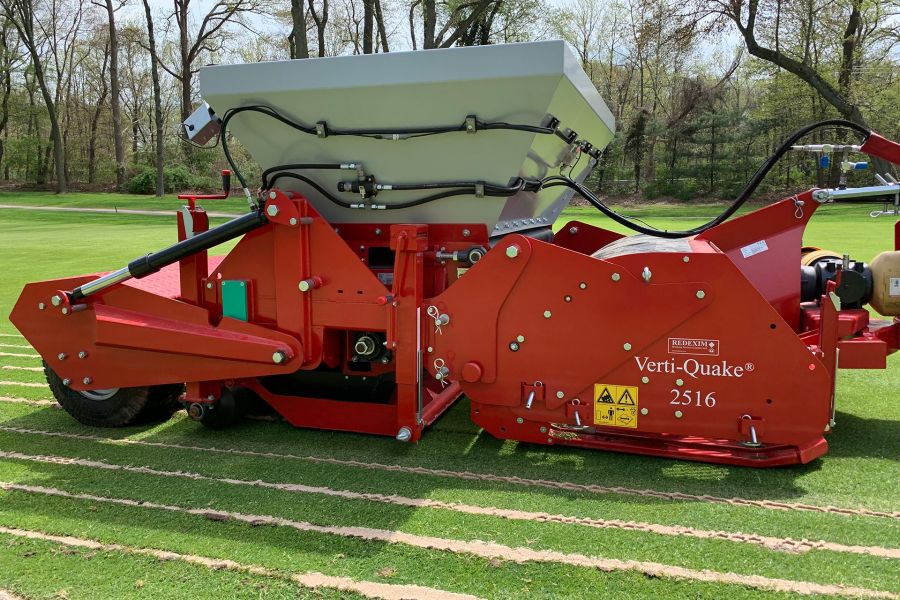

Vibra-Sandmaster
The Vibra-Sandmaster de-compacts & adds surface drainage to the soil profile all in one pass. Integrated within the Vibra-Sandmaster is the Verti-Quake® 2516, this de-compacts and opens the soil to depth of 250mm. Vibrating coulters fill the slits with sand to leave minimal surface disruption.
- Immediate results
- One pass opperation
- Ideal contractors tools
- The Rink DS3100CB is an ideal companion to fill the Vibra-Sandmaster
€61,000.00
Ex VAT @ 23%
Specifications
- SKU 115.251.502
- Working width (m) 1.56
- Working width (inch) 61.4 Max.
- Working depth (mm) 125-200
- Max. Working depth (inch) 4.9 - 7.9
- Hopper capacity (m3) 1.5 Hopper capacity (FT3) 53
- Weight (kg) 2650
- Weight (lbs) 5842
- Number of filling coulters 6
- Distance between filling coulters (mm) 260
- Distance between filling coulters (inch) 10,236
- Thickness of filling coulters (mm) 25
- Min. Tractor HP required 65-90 with four-wheel drive
- Max. capacity ( m² hr) 1000
- Max. capacity (ft² hr) 10800
- Min. Oil supply of tractor (l min) 30
- Min. Oil supply of tractor (US Gal min) 7.9
- Required connections 1 x Double-acting valve (elevating the machine) 2 x Double-acting valves (conveyor drive)
- Rpm Max. 540
- Lubricant EP2 + High grade grease HT Q9
Default Category
-
Vibra Sandmaster Brochure Size: (272.95 KB) Downloads: 0
-
Vibra Sandmaster Manual Size: (2.11 MB) Downloads: 0
