Verti-Drain 7521
SKU
7521
Verti-Drain 7521

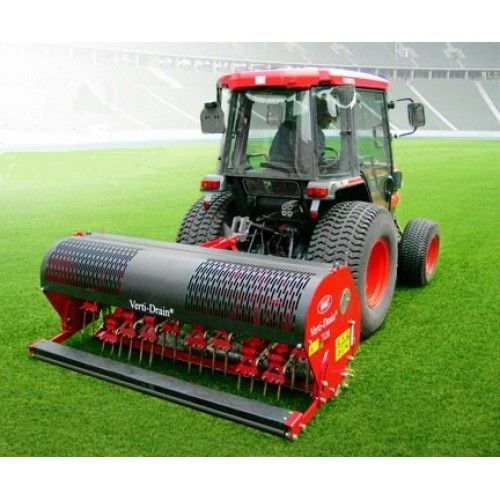

The Verti-Drain® 7521 offers robust functionality and depth in one machine, it has the ability to work to 16” / 400mm deep. The 7521 is popular with contractors and golf clubs in part due to its ability to accept a large range of tines for different applications.
- Large range of tines
- Ideal for covering wheel width of mid-size chassis tractors
- Need to work in tough soils, consider the 7626 Verti-Drain
Price not available
Specifications
- SKU 7521
- Working width (m) 2.1
- Working width (inch) 83 Max.
- Working depth (mm) 400
- Max. Working depth (inch) 16
- Weight (kg) 1375
- Weight (lbs) 3025
- Hole distance with 12 mm tines (mm) 65
- Hole distance with 1 2 x 6 inch tines (inch) 2.5
- Hole distance with 24 mm tines (mm) 129
- Hole distance with 1 x 16 inch tines (inch) 5
- Hole spacing distance driving direction (mm) 50-195
- Hole spacing distance driving direction (inch) 2 - 7-1/2
- Max diameter solid tine (mm) 24 x 400
- Max diameter solid tine (inch) 1 x 16
- Max diameter hollow tine (mm) 32 x 300
- Max diameter hollow tine (inch) 1-1/4 x 12
- Min. Tractor HP required 55
- Min. lifting capacity (kg) 1650
- Min. lifting capacity (LBS) 3600
- Max. capacity with spacing 65 mm (m² hr) 1470
- Max. capacity with spacing 2-1 2 inch (ft² hr) 13400
- Three-point hitch 3-point CAT 2
- Rpm Max. 500
- Gear case oil 80W90 - 5.8
- Lubricant EP2
- Slip clutch setting 800 Nm
- Solid tine 18 x 300mm
- Toolbox with combi tool and manual
- PTO Shaft
| Weight (kgs) | 1375kg |
|---|
